Get a premium, fully integrated “appliance-like” experience with a DataON AZS-8112a Integrated System+ for Azure Local. Designed for edge deployments where space and power efficiency matter, it delivers the fastest time-to-value through the convenience of pre-installed software, integrated drivers, and firmware updates. Simple to procure and deploy, they’re turnkey solutions that require little deployment effort from IT staff.
DataON Integrated Systems+ go beyond the standard Microsoft tier requirements to provide a more complete experience that includes deployment, integration, and training services. Our goal is to not only get you up and going quickly but also to help your team to be confident in managing Azure Local.
DataON Integrated Systems+ are powered by AMD EPYC™ 9005 Processors, combining AMD technology with Azure Arc-enabled Azure Local. Microsoft and AMD have worked closely together to optimize the features and performance of Azure Local, providing a fast path to hybrid cloud deployment and data center infrastructure modernization.
| Model | DataON AZS-8112a Integrated System+ for Azure Local |
| Profile | All-NVMe; Edge (Optimized for Size & Power) |
| Form Factor | 1U / 1-Node rack server |
| Scalability | 1 to 16 Nodes per cluster |
| CPU | AMD EPYC™ 9005 Processors |
| Cores | Single socket, 8-48 cores (per node) |
| Memory | 32GB – 3TB DDR5 DIMMs @ 5200 MT/s (1 DPC), 4400 MT/s (2DPC) |
| Raw Storage | 3.84TB – 184TB |
| Drive Bay Configuration | 12x 2.5” NVMe U.2 Gen 5.0 |
| PCIe Slot Configuration | PCIe Gen 5.0 x16 FH/HL; 1x PCIe Gen 5.0 x16 HH/HL; 1x PCIe Gen 5.0 x8 HH/HL |
| Add-on Networking | 4+ ports 25GbE SFP28 or 8+ ports 50GbE SFP56 or 4+ ports 100GbE QSFP28 (RDMA per node) |
| Max. TDP | 400W |
| Power | Dual 1600W @ 100-240V |
| GPU Support | No |
| Secured-Core Server | Yes |
| Kernel Soft Reboot | Yes |
| Vectorized AES | Yes |
| VM Memory Encryption | Yes |
DataON Exclusives for Integrated Systems+ for Azure Local
A premium Azure Local experience
DataON solutions go BEYOND the standard Microsoft Azure Local solution requirements to provide a more complete experience that includes deployment, integration, and training services. Our goal is to make sure your team is confident in using and managing Azure Local.
Easy lifecycle management with SBE
DataON Solution Builder Extension (SBE) works with Microsoft cluster aware updating (CAU) to simplify lifecycle management, improve reliability, and ensure seamless orchestration of firmware, drivers, and diagnostics. Updates can be applied as a full solution update with minimum disruption to your environment.
World-class service and support
DataON’s team of Azure Local experts provide 24×7 white glove service to make sure you stay up and running. DataON is your single contact and can engage Microsoft for advanced support and troubleshooting.

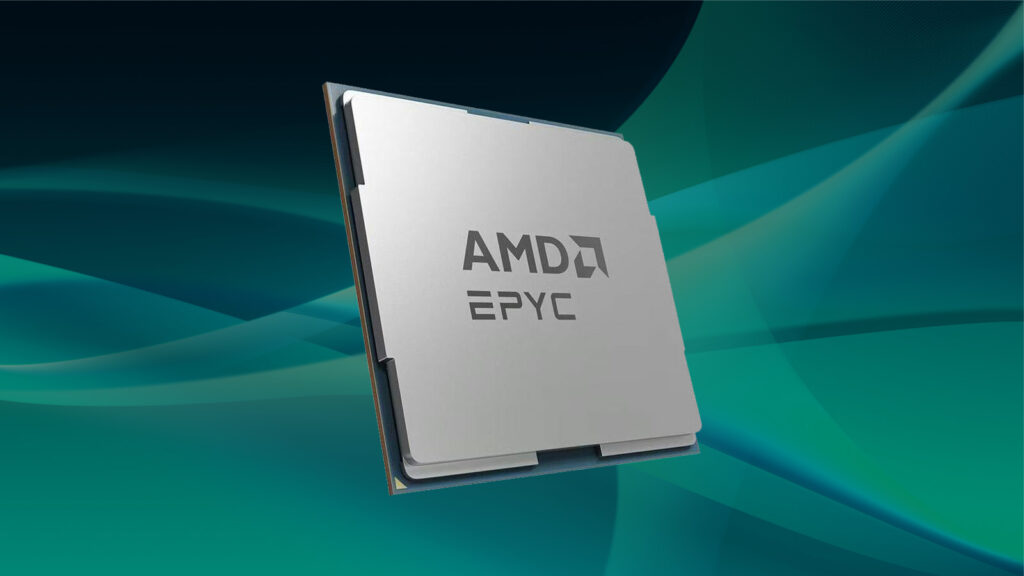

Boost performance with AMD EPYC™ processors
AMD EPYC™ Processors are designed for the most demanding data center, cloud, AI/ML, HPC, and enterprise workloads. They redefine data center performance with high core density, advanced security, and energy efficiency.
Solidigm NVMe SSDs for performance software-defined storage
Solidigm TLC NAND and QLC NAND SSDs provide high performance and low latency for Azure Local. All-flash SSDs offer the performance and reliability needed to support multiple workloads with high performance in a single cluster.
NVIDIA networking delivers industry-leading performance & efficiency
NVIDIA ConnectX SmartNICs offer flexibility, higher performance and lower latency through RoCE v2 technology. This allows for more virtual appliances, virtual machines (VMs), and tenants to co-exist on the same hardware.
Resources

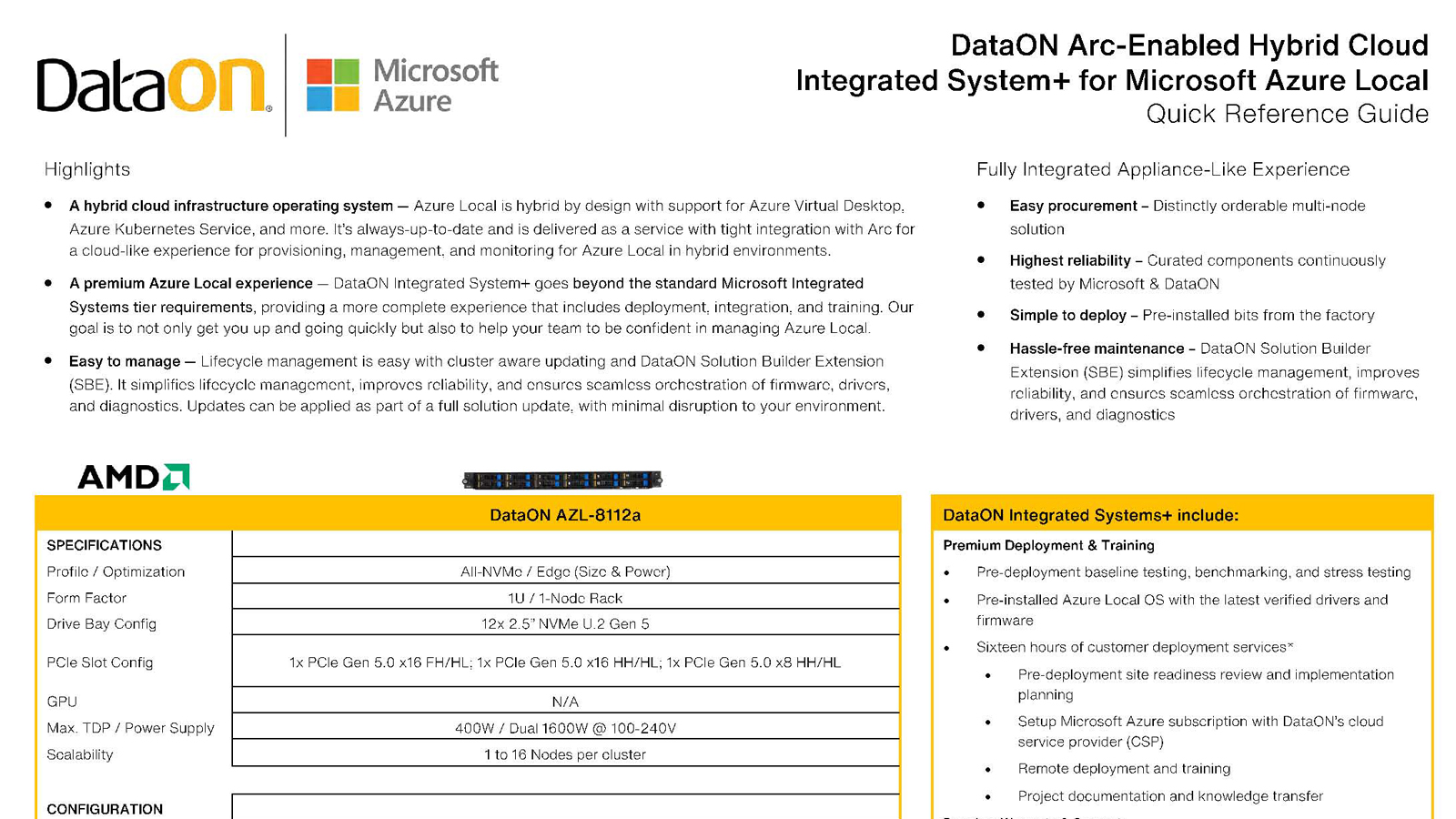

AZS-8000a Quick Reference Guide
Microsoft Azure Local Overview
Microsoft Azure Local Whitepaper
Hybrid Cloud Use Cases
for Azure Stack HCI
AMD EPYC™

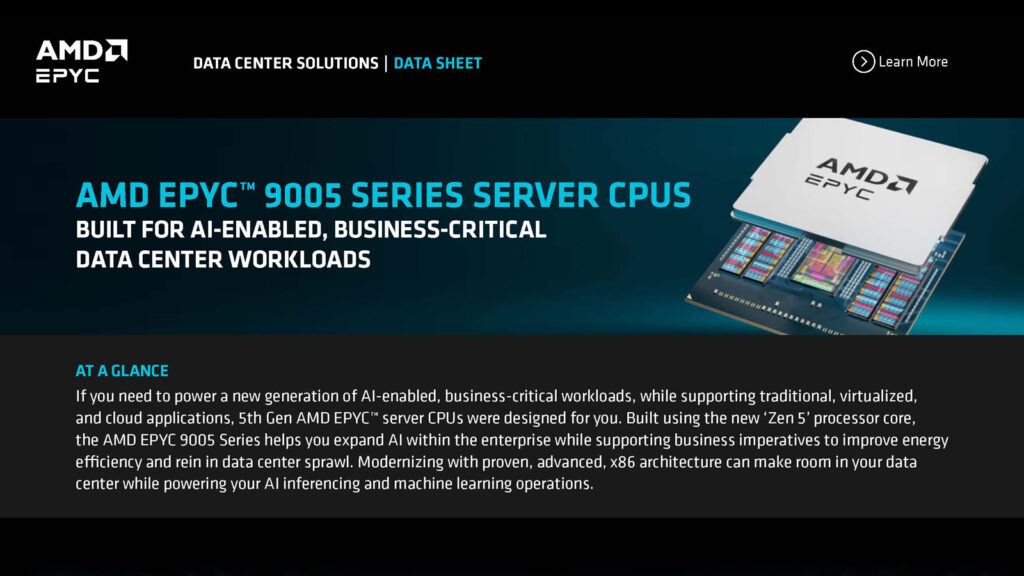

9005 Processors Solution Brief
